Wireless Three Phase Multi

Overview

Basic Info.

Model NO.	ADW210-D16-4S
Installation	Indirect Connected
Usage	Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment	Three-phase Four-wire
Theory	Electronic Meter
Power Meter Connection	Terminal
Measured Signal	Pulse Peak
Type	Energy Meter
Certification	CE
Customized	Customized
Optional Function 1	12 Temp. Measure, 4 Residual Current
Standard Function	2di2do, 1 Active Pulse Output
Certificate	CE
Optional Function2	12 Di and 4 Do
Input Voltage	AC 3X220V/380V
Input Current	100A
Acurracy	0.5
Name	3 Phase 4 Channel Energy Meter
Transport Package	Paper Carton
Specification	88*54mmmm
Trademark	ACREL
Origin	Jiangsu, China
HS Code	9028301400
Production Capacity	1000PCS/Week

Packaging & Delivery

Package Size 20.00cm * 15.00cm * 20.00cm Package Gross Weight 2.000kg

Product Description

Product Description

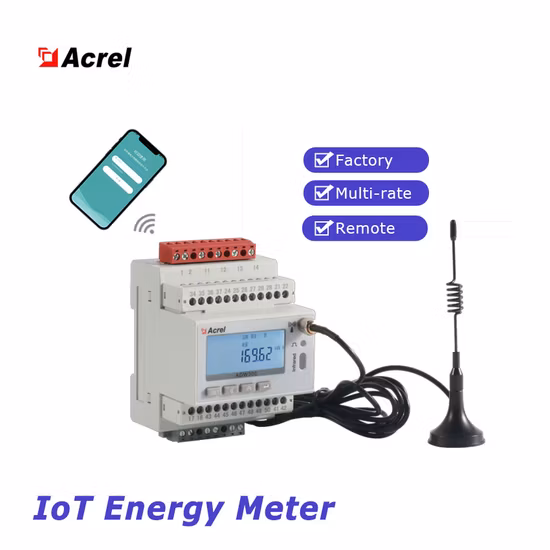

LCD LoRa wireless multi circuit energy meter with 4G for base station

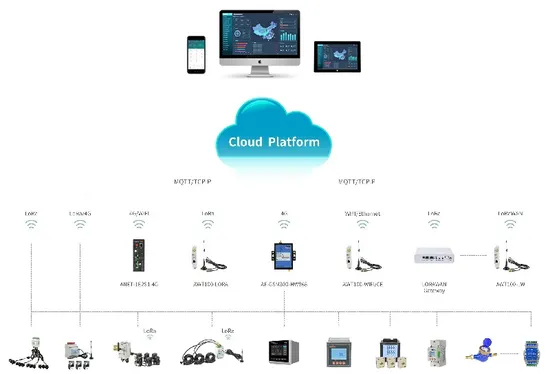

ADW210 multi loop energy meter adding AWT100-LoRa (down link:RS485 up link:LoRa and gateway AF-GSM300-HW868(down link LoRa up link
4G),then it can upload data by
4G to cloud platform supporting MQTT,http and other protocols.
ADW210 series 3 phase power meter can measure up to 4 channel 3 phase current input
It is with MODBUS-RTU RS485 communication and it convenient for the users to monitor,collect and manage electricity.It can be installed in powerdistribution cabinet to realize energy metering,counting and analyse of different areas with different load.Functions and Parameters

Functions of ADW210-D16-4S 4 channel 3 phase power meter

*Accuracy:0.5
*LCD display,3 phase 4 channel power meters with 12 current transformers
*Measure parameters:current,voltage,zero sequence current,frequency
power,total power(active,reactive and apparent power),power factor,total power factor
current voltage phase angel,voltage current unbalance
voltage current total harmonics and 2-31st sub-harmonics
extreme value record of current,voltage and power in this month and last month
max current,power demand and real time current
200 event records and record of DI DO
support over voltage,over current,phase loss,DI linkage and other alarm output
Functions: 2DI2DO;1 channel active pulse outputData sheet

Parameters of AEW210-D16-4S(LCD display,3 phase 4 circuit power metr with 12 CTs)
Input Voltage	AC 3X220/380V
Input Current	max up to 100A
Frequency	45~65HZ
Accuracy	0.05Hz(frequency);0.5(voltage,current);1(active energy);2(reactive energy);±%(2-31st harmonics)
Switching value		pulse output:Dry contact input,in-built power supply
		relay NO contact output;contact capacity:AC250V/3A DC30V/3A
Communication		RS485,Modbus-RTU;baud rate 1200-38400
Basic functions
3 phase voltage,current,zero sequence current and frequency measuring
3 phase power,total power(active,reactive and apparent power),power factor and total power factor measuring
voltage current phase angle,current voltage unbalance
2-31st sub harmonic and total harmonic analysis(voltage and current)
extreme value record of voltage,current and power in this month and last month
max current,real current and power kwh max demand
200 SOE,record DI and DO
Support alarm output: over voltage,over current,phase loss,DI linkage and so on
4 time zones and 14 time periods multi tariff setting
4 quadrants energy,12 months multi tariff energy couting
31 days 4 quadrant and multi tariff energy frozen
accuracy:active energy class 1,reactive energy class 2
2DI2DO,1 active pulse output

Extended function(optional)
Switching value module(MK)	12 DI	12 DI, relay NO contact input and in-built power supply
	4 DO	4 DO, relay NO contact output;contact capacity:AC250V/3A DC30V/3A
	Communication	RJ45,modbus-rtu(communicate with ADW210 module
	power supply	RJ45,DC12V
Temperature and leakage current module(MTL)	Temperature measuring	NTC input,range:-20ºC-100ºC
	Leakage current measuring	residual current transformer :10-3000mA
	Accuracy	Temperature:±1ºC,leakage current:1
	Communication	RJ45,modbus-rtu(communicate with ADW210 module
	power supply	RJ45,DC12V

Dimensions and Wirings
Remark:Module here means 12 DI 4 DO module or temperature and leakage current measuring module

Instrument type	Dimensions(mm)
	length	width	height	length(with terminal block)
ADW210	87.8	72	71.5	97.7
ADW210 module size	87.8	36	71.5	105.5

CTs	Dimensions(mm)					Hole size(mm)
	W	H	D	M	N	Φ1	Φ2
AKH-0.66/K-Φ16N	31	50	36	27	42	16	17

Max circuits up to 4 channels(3 CTs for every channel,max up to 12 CTs)
